This listing is for our ready for paint or powder coating Devil frame sets. These frames have a ED coating which primes and protects it from the inside out, but needs a top coat of liquid paint or powder.

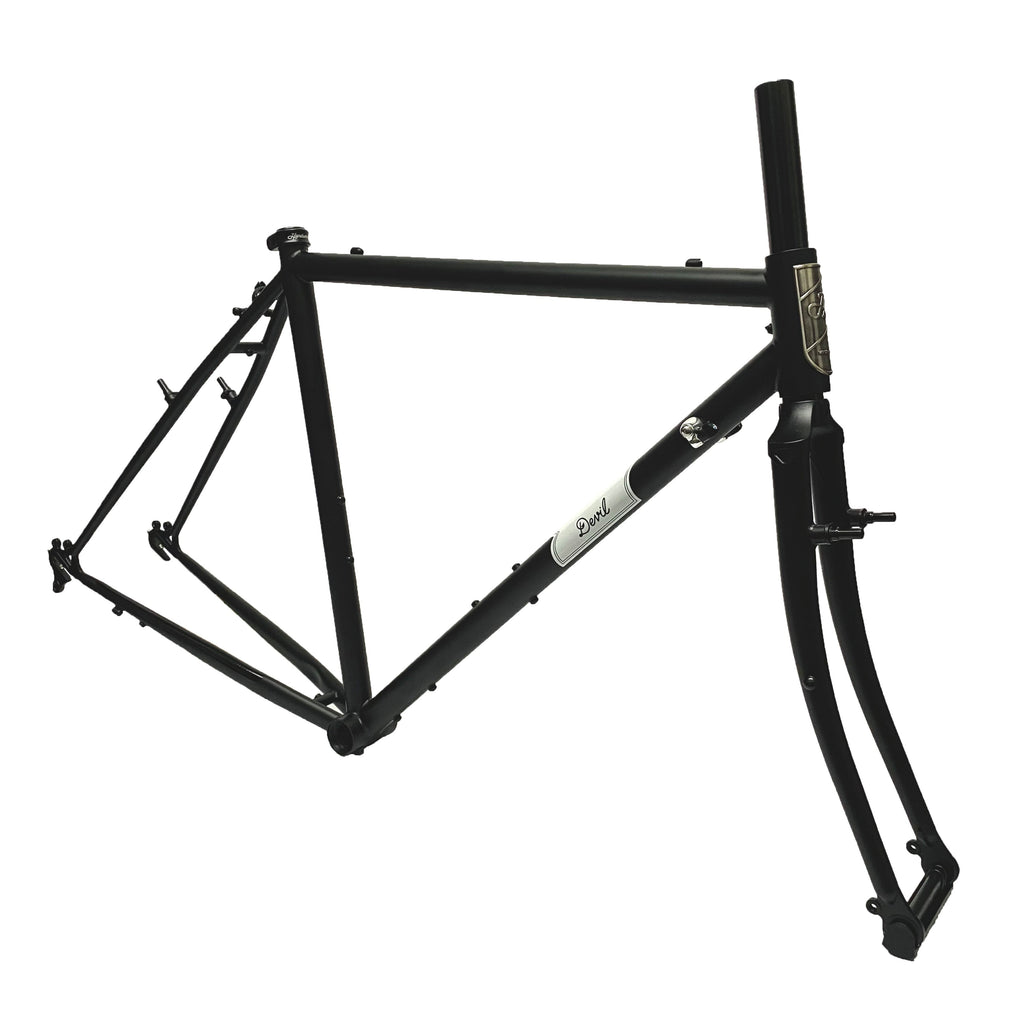

This high quality 4130 double-butted, heat-treated, cro-moly steel frame set was designed to give ultimate versatility to riders who either commute daily, just ride for leisure, or want to tour across the country. Includes: Frame, Fork, Seat Collar, Axle Tension Bolts, Aluminum Headbadge, Decal Packet
Handsome Cycles original model based on the geometry of the Bridgestone XO-1 from 1993. This frame set was designed to give ultimate versatility to riders who either commute daily, just ride for leisure, or want to tour across the country. Includes: Frame, Fork, Seat Collar, Axle Tension Bolts, Aluminum Headbadge, Decal Packet. Full specs below.
Frameset Geometry
Frame specs:
- TIG Welded, 4130 Double Butted Cro-moly Main Triangle, 4130 Chromoly Seat Stays, Chain Stays 1-1/8”
- Headtube, 34mm Cup Size
- 27.2 Seatpost Diameter
- 30.0 Seat Collar Size (Seat Collar Included – Silver)
- 68mm English Threaded Bottom Bracket Shell 1.37 x 24t
- 132.5 Rear Dropout Spacing, Semi-Horizontal
- 700c Wheel Size
- 700 x 47 Tire Clearance Without Fenders (Continental City Contact)
- 700 x 38 Tire Clearance With Fenders (32 with tread)
- Integrated Rear Cable Hanger
- Double Rear Fender and Rack Mounts at Dropout Rack Mounts on Seat Stays Near Seat Tube
- 28.6 Front Deraileur Mounting Size
- Downtube Shifter Bosses / Downtube Stop Mounts Cantilever / Linear Pull Brake Bosses
- Weight: 55cm = 5.06 lbs
Fork specs:
- 4130 Cro-moly Fork Blades, Crowned, TIG Welded
- Cro-moly Steerer Tube Pre-cut For 100mm Stack Above Headset
- 30.0 Crown Race Sizing
- 100mm Spacing
- Front Fender and Rack Mounts
- Mid Fork Blade Front Rack Mounts
- 700c Wheel Size
- 700 x 47 Tire Clearance Without Fenders (Continental City Contact)
- 700 x 38 Tire Clearance With Fenders (32 with tread)
- Cantilever / Linear Pull Brake Bosses
- Weight: 55cm = 2.375 lbs
